Constant 48V 60W dimmable Triac taglio di fase 0-10V (5in1)
  • Constant 48V 60W dimmable Triac taglio di fase 0-10V (5in1)
  • Constant 48V 60W dimmable Triac taglio di fase 0-10V (5in1)
Constant 48V 60W dimmable Triac taglio di fase 0-10V (5in1)
Constant 48V 60W dimmable Triac taglio di fase 0-10V (5in1) Constant 48V 60W dimmable Triac taglio di fase 0-10V (5in1)

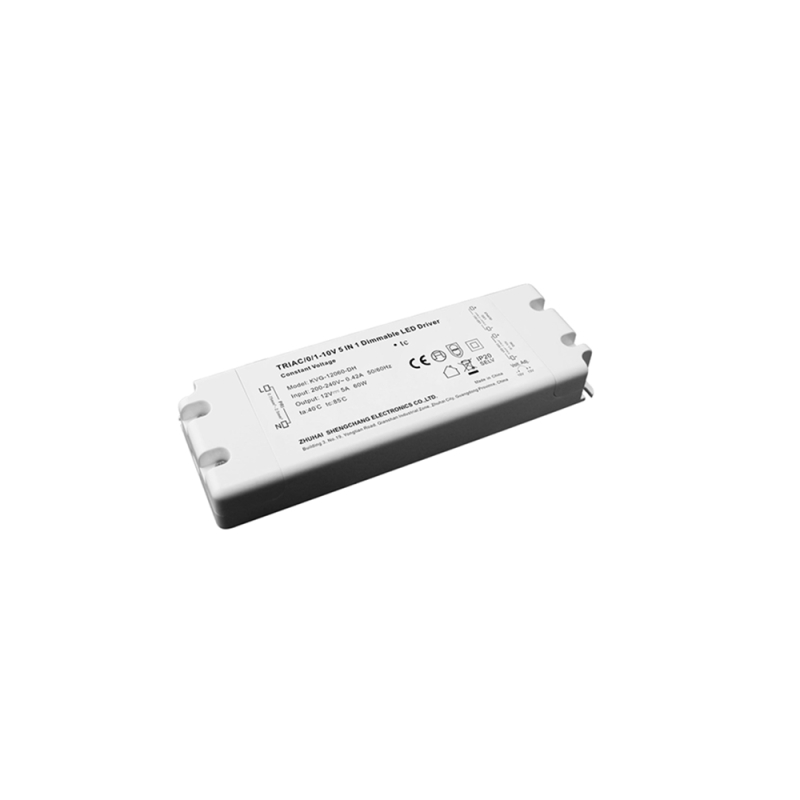

Dimmable power supply 48V with phase cut and 0-10V

SCPOWER

Trustpilot
$64.74
24 / 48 hours

Constant voltage LED power supply 60W, 48V.

Read more ...
Select Version
local_shipping Shipped in 1-2 days
check
In stock
10 Items

Quantity

payments You can pay in installments with PAYPAL OR SCALAPAY
Description
Product Information:

LED power supply in constant voltage 60W max at 48Vdc dimmable (5 in 1) with Phase dimming: work with Forward phase, MLV and Reverse phase, ELV, TRIAC dimmers. 0-10V dimming: 0-10V/1-10V/Potentiometer/10V PWM 4 in 1. Dimming range: 0-100%. Available at 200-240V and 100-277V. Dimensions: 178x61x24mm.

Characteristics:

  • Rated Current:1.25A
  • 46-50V adjust by knob
  • Protection: IP 20
  • Power: 60W
  • Operating temperature: ta 40° - tc 80°
  • Dimensions: 178x61x24mm (L-W-H).
  • Dimmable Triac - 0-10V - 1-10V - Potentiometer - 10V PWM - ELV -MLV
  • Certificate: ENEC Pending-SAA-CE-RoH-REAC-UL

Download the pdf for all additional information and assembly instructions in all different control modes.


picture_as_pdf Datasheet

picture_as_pdf Datasheet_1
Warranty 2 Years
100% original product by

Details:
check
In stock
10 Items

Data sheet

Reference
KVG-48060-DH
Input voltage
100-240 V
Input voltage
220-240 V
Output voltage
48V
Depth in mm
24
Width in mm
61
Length in mm
178
Degree of protection
IP20
Material
Plastic
Adjustable power
Dimmable
Power output in watts
60 w
Compatible voltage
EU-AUD-USA-UK-JAP
