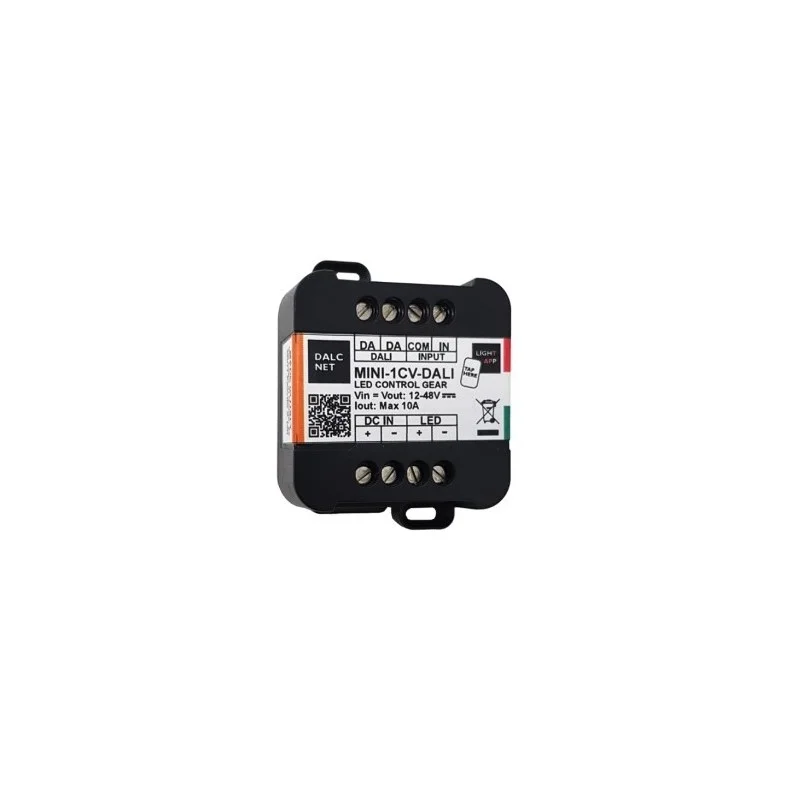

Dalcnet Dimmer LED 12V-24V-48V Dali /push/0-10V/APP
$74.75
24 / 48 hours
The MINI-1CV-DALI is a single channel LED dimmer, controllable via the DALI protocol or via a normally open button, a 0-10V / 1-10V signal or 12-24-48V potentiometer
Read more ...Description
Product Information:
The dimmerLED is suitable for driving loads such as stripLEDs and LED modules, white and single-color at constant voltage. It is possible to connect a 12-24-48Vdc power supply. The maximum value of the output current that can be delivered is equal to 10A. The dimmerLED has the following protections: over-power protection, under-power protection, reverse polarity protection, input fuse protection, output short circuit protection, short circuit detection and circuit detection open on exit. Using the Dalcnet LightApp mobile application it is possible to configure multiple parameters of the MINI-1CV-DALI such as dimming frequency, dimming curve, max and min brightness level, fade time etc. LightApp can be downloaded for free from the Apple APP Store and the Google Play Store.
Protections
- Overvoltage protection
- Undervoltage protection
- Reverse polarity protection
- Input fuse protection
- Short circuit protection
- Short circuit detection
- Output open circuit detection
Characteristics
- Power input: 12-24-48 Vdc
- Power Current: Max 10A
- Voltage output for stripLED and LED modules
- Connector type: Screw terminals
- Control of WHITE and SINGLE COLOR light
- Device configuration and DALI commissioning using Dalcnet LightApp mobile application
- BUS command: DALI
- Constant voltage outputs for resistive loads
- PWM modulation
- PWM frequency settable by APP
- Regulation curve settable by APP
- Fade time can be set from the APP
- Soft on and off
- Extended temperature range
- 100% functional test
For more information, see the attached PDF
100% original product by
Details:
check
In stock
Data sheet
- Reference
- MINI-1CV-DALI
- Input voltage
- 12-24-48 V DC
- Depth in mm
- 24.9
- Width in mm
- 44.4
- Length in mm
- 57.2
- Degree of protection
- IP20
- Material
- Pvc
- Light source
- LED
- Adjustable power
- With DALI & Push system
- Current carrying capacity
- 10A
