Flos Cielo L1245 led recessed IP67

Product Information:

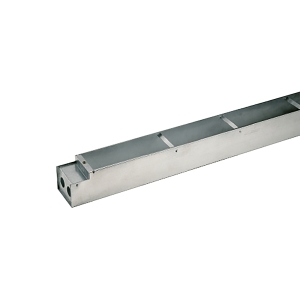

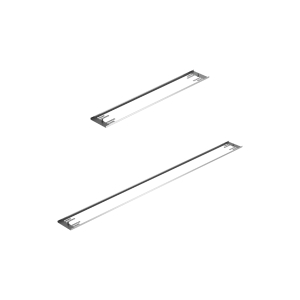

Cielo is a collection of walkable floor-recessed linear fixtures that can also be installed on walls and ceilings with a dedicated formwork, or in false ceilings with a special frame. It consists of an extruded aluminum body with a double die-cast aluminum end cap (EN AB 47100 alloy with low copper content), an 8mm-thick tempered glass diffuser, transparent or sandblasted, with silk-screened edge attached through a robotic bonding system. The luminaire is wired with two M20 plastic cable glands positioned at one end for connection to the electrical module, which is fixed on a removable plate. The optics that can be swiveled on the vertical axis provides greater pointing flexibility. Installation requires a flush-mounted formwork to be ordered separately. It is necessary to ensure an adequate level of drainage material under the formwork or provide a drainage system to prevent water pooling. Flexible electrical cables suitable for outdoor use must be used to ensure the tightness of the cable gland.

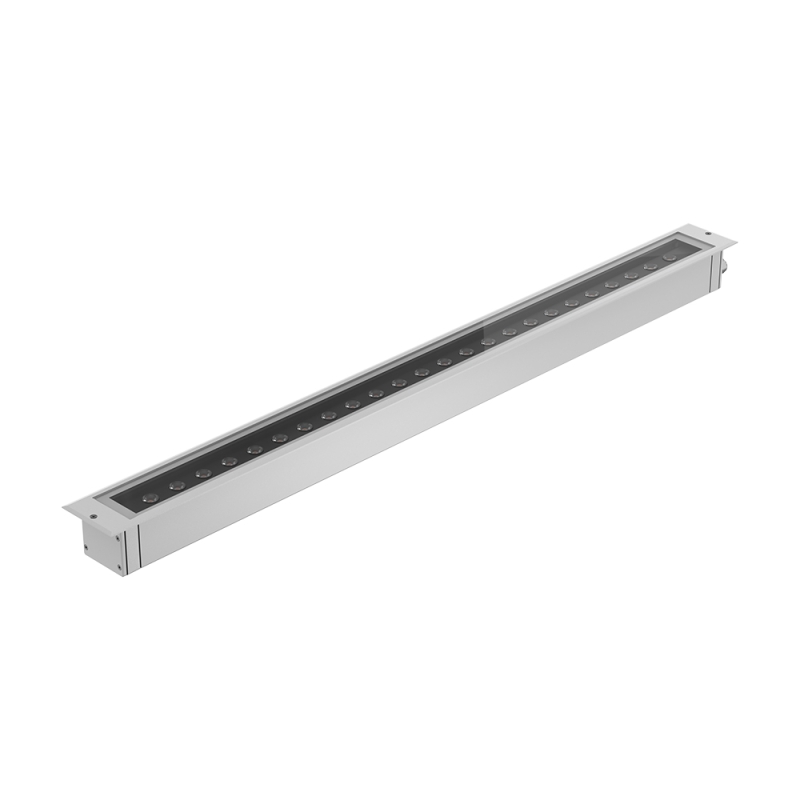

Cielo L 1245 is the largest version of the collection, with a length of 1245mm. The fixture is complete with LED source and 220-240V power supply, and it is possible to choose the dimming protocol between ON/OFF (non-dimmable) and 1-10V dimmable versions. The vertical axis of the luminaire has a swivel range of up to a maximum of 12°. Equipped with two M20 plastic cable glands (cables 6<ø<12mm) for connection to the electrical module for watertight connection. Extra-clear transparent glass. Available in two finishes gray or anthracite, in light temperature versions 3000K (warm light) or 4000K (neutral light) and in Spot 10° or Medium 45° optics.

- Source: 32W LED

- Dimming protocols: ON/OFF or 1-10V

- Light temperature:

• 3000K - 2880 lm
• 4000K - 3120 lm

- Beams:

• Spot 10°
• Medium 45°

- Power supply: Included

- Formwork: Not included

- Walkable and driveable: max 1500 kg

- Dimensions: 124545x100x79 mm

Only on request versions are available:

- Light temperature 2700K (very warm)

- DALI protocol

- Elliptical Optics 12°+54°

- RGB version
