Flos Spot Module Led Array 10W for Light Cut Mini

Flos Spot Module Led Array 10W for Light Cut Mini

Name: Flos Spot Module Led Array 10W for Light Cut Mini
Brand: Flos Architectural
SKU: Spot Module LED Array

Brand Flos Architectural

$258.48 Save 8%

instead of $280.96

The product can be ordered

More buy more save

If you buy 5 products the price is

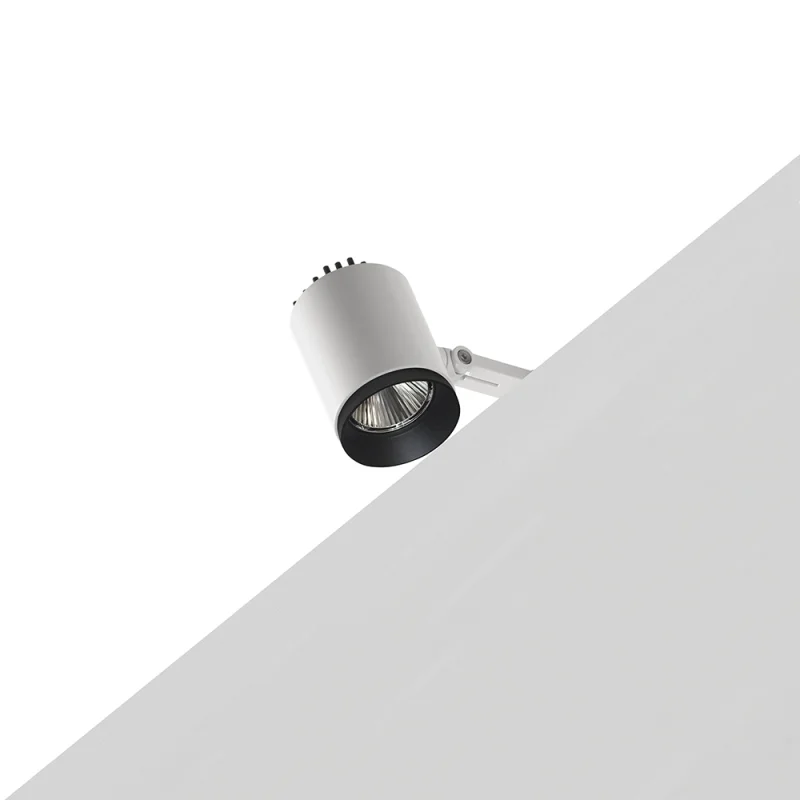

Flos Light Cut Mini - Spot Module Led Array, adjustable spotlight with 10W power for installation on Channel and Perimetral profiles. Available in two finishes and different variants. Compatible only with the Light Cut Mini system.

Product Information:

Light Cut Mini is a lighting system consisting of an extruded profile that integrates perfectly into ceilings exclusively made of plasterboard. It is prepared for easy integration of lighting using LED projectors. The projectors are designed to be installed directly above the profile, with Class II remote devices. Light Cut mini profiles are offered for installation in three different configurations: Perimetral, 70 mm Channel and 140 mm Channel (see diagram in the pictures), compatible with all spotlights.

Spot Module LED Array - spotlight for installation in the Light Cut Mini structure. Distinctive design and essential geometries are the basis of this functional and versatile spotlight. It is offered in white or black finishes, and in different versions. In fact, it is possible to choose the optics from Medium 26°, Flood 30° e Wide Flood 43° versions. The remote constant current power source is not included. The luminaire is dimmable with appropriate driver (not included). It can also be swiveled for an adjustable spread as needed, 350° on the horizontal axis and 180° on the vertical axis.

- Source: LED Array DC 10W 300mA

- Dimming protocols: ON/OFF, 0/1-10V, DALI 2 110-240V, Mains Dimming, Casambi

- Light temperature: 3000K - 1380 lm

- Available beams:

Medium 26°
Flood 30°
Wide Flood 43°

- Power supply: Not included

- Dimensions: 94xØ60x95 mm

- Weight: 0.30 kg

picture_as_pdf Datasheet

Available versions

Color:

Black -

White -

Opening beam:

Medium 26° -

Flood 30° -

Wide Flood 43° -

100% original product by

Details:

Data sheet

Reference: 09.0217.30C
Input voltage: 100-240 V
Depth in mm: 95
Width in mm: 94
Diameter in mm: 60
Degree of protection: IP20
Material: Aluminum
Light source: LED
Watt power: 10 W
Light Temperature: 3000 K Warm white
Driver power supply: Without driver
Constant current output: 300mA
Insulation class: Insulation class III
Mounting: Track
Color rendering index: CRI90
Light Emission: Direct/Indirect
Complete with LED: Integrated
