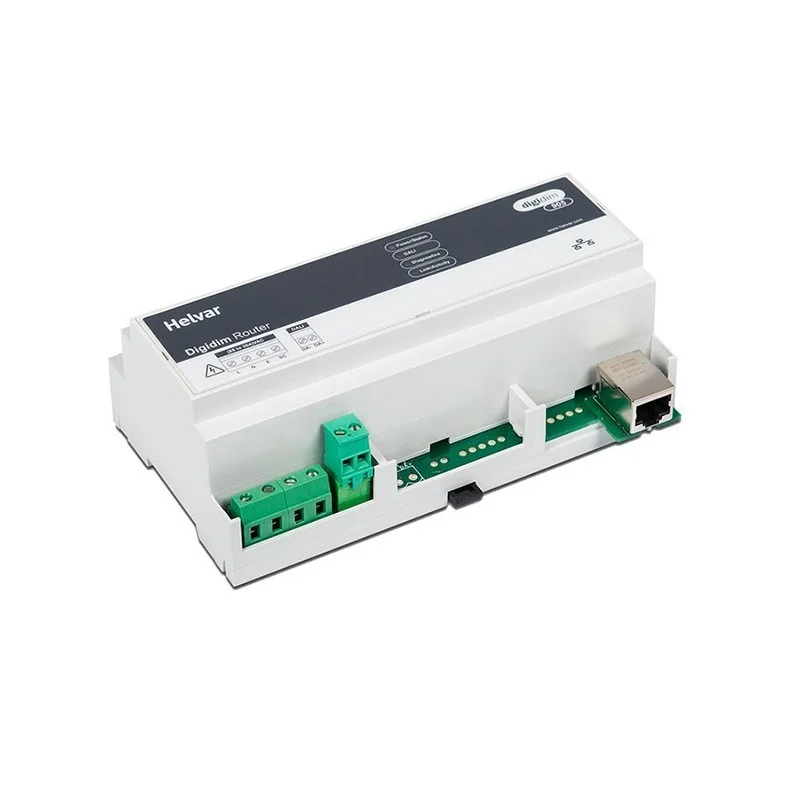

Helvar 905 Digidim DALI Single Output Router With Ethernet Connection Subnet

Product Information:

Helvar s Designer software allows for advanced configuration and functional programming of the router. The system provides energy-saving features via presence detection and daylight harvesting. Further automation can be achieved through scheduled events. A PC can be connected to the system for diagnostics and logging purposes if required, but there is no need for PC control in daily operation, as all data is stored within the system itself. The elimination of a central controller ensures that no single point of failure can cause a total system shutdown.

Key Features

Support for 64 DALI devices.
Certified DALI-2.
Built-in real-time clock.
Can be networked together to form large scalable systems.
Provides local as well as central control if required.
Compatible with other Helvar routers (910/920).
Integration with other building systems.
Universal supply input.

Applications

Hotel rooms and suites
Outpatient clinics and hospital wards
Meeting rooms and board rooms
Classrooms and auditoriums
Residential
Individual areas (see above) can be linked together for centralized control.

Notes for installation

For installation in technical rooms only
Isolate the mains power supply before installation
The power line of the router must be protected. Protect with external circuit breaker (MCB) max: 6 A
All DALI and power wiring must be mains isolation
The unit must be installed horizontally to allow heat dissipation
Any indoor installation must allow adequate cooling ventilation
Refer to the installation guide for the Imagine 905 Router
