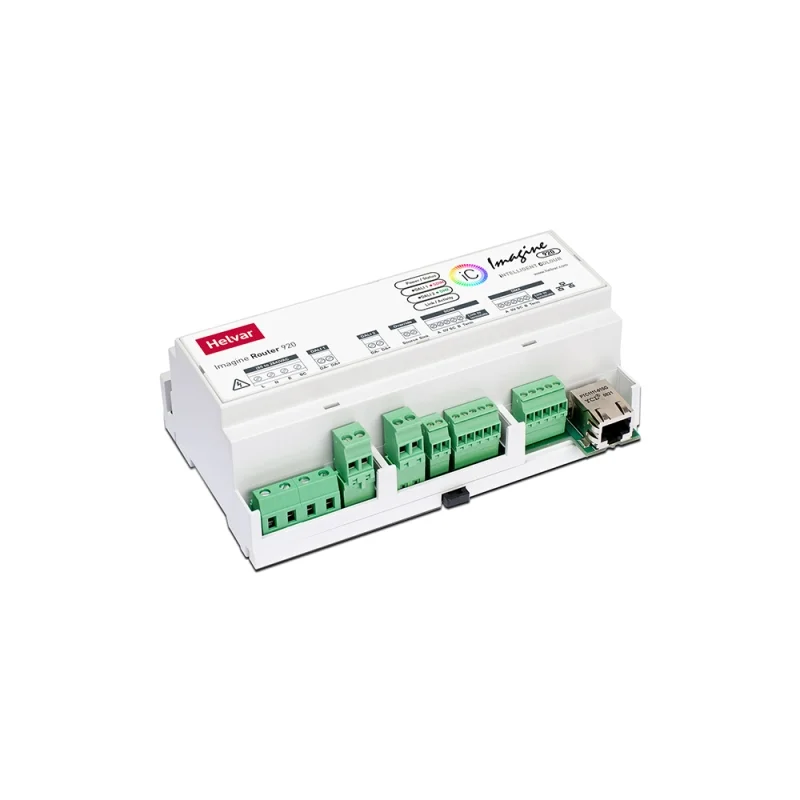

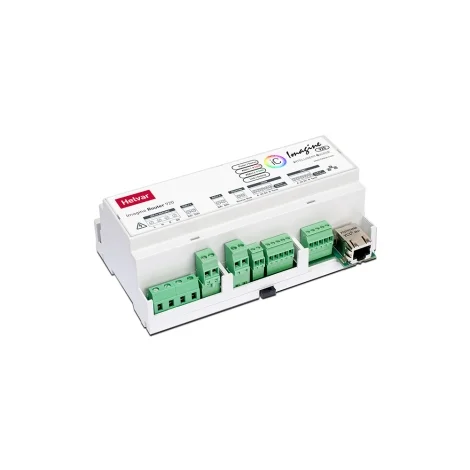

Helvar 920 DALI2 dual network router with Ethernet connection

Product Information:

Helvar's Designer software allows advanced programming of the router. The system provides energy saving functions through presence control and constant light regulation. Further automation can be obtained with event programming. The OPC server software allows interfacing with Building Management systems (BMS). A PC can optionally be connected to the system for diagnostic and monitoring purposes if required, but all settings are stored within the system itself, so it is not mandatory to have a PC continuously connected. Not requiring a centralized controller, the system does not risk a total shutdown if this fails.

Main features

• Each router supports up to 128 DALI devices (64 devices for each line)
• Internal 250 mA power supply for each DALI line
• Up to 100 routers in a single group can be connected together
• Up to 12,800 devices in 16,000 DALI groups for a single router group
• TCP/IP and DALI protocols
• Integrated clock
• Universal power supply
• Up to 252 S-DIM addresses
• Up to 512 DMX addresses ('In' or 'Out')

Installation notes

• Only for installation in technical rooms
• Before installation, isolate the circuit
• The external power supply must be protected - protect with external circuit breaker (MCB) max: 6 A
• All DALI and power wiring must be mains isolated
• Do not connect S-DIM and DMX devices to the same line
• The unit must be installed horizontally to allow heat dissipation
• Any indoor installation must allow adequate cooling ventilation
• Refer to the installation guide for the Imagine 920 Router

Connections

• Power cable: Stranded up to 4 mm2
• Strands up to 2.5 mm2
• DALI cable: 0.5 mm2 - 1.5 mm2 (max. 300 m @ 1.5 mm2)
• Override: Source: 3 V, 50 mA / Sink: Max. 28 V, 50 mA
• S-DIM and DMX cable
• Low losses type RS485
• Stranded, twisted and shielded
• 3 or 4 conductors with shield
• 0.22 mm2 to 1.5 mm2, max. length 1000 mm
• Ethernet: 1 x RJ45 10/100 Mbps, Cat 5E up to 100 m (Auto MDI/MDI-X crossover)

Diet

• Mains power: 85-264 VAC, 45-65 Hz
• Power dissipated: 23 VA
• Circuit protection
• power: 6A MCB max.
• The mains supply must be protected

Absorption

• DALI: 2 x 250 mA (current limited)
• Mechanical data
• Dimensions (mm): 9U – 160 (W) x 100 (H) x 58 (D)
• Weight: 260g
• Mounting: DIN Rail: Hold DALI cables and cables
• power supply separated from Ethernet, S-DIM and DMX cables
• IP classification: IP 30 (IP 00 at connector level)

Operating conditions

• Ambient temperature: 0ºC to 40ºC
• Relative humidity: Max 90%, non-condensing
• Temperature of
• storage: -10°C to 70°C

Compliance and standards

• DALI data transfer: DALI standard IEC60929, with extensions
• Helvar
• EMC Emissions: EN 55 015
• Immunity: EN 61 547
• Safety EN 60 950
• Insulation: 4 kV
• Environmental: Meets WEEE and RoHS

For more information, see the attached PDF
