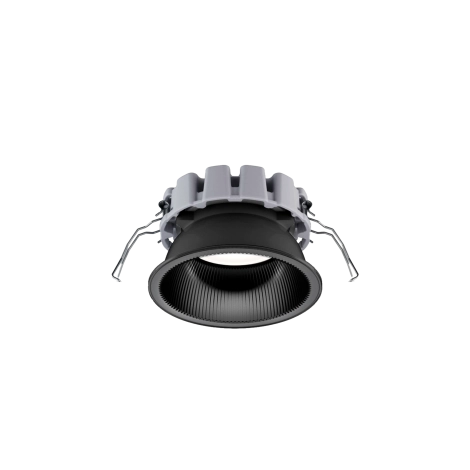

iGuzzini Easy space round LED recessed spotlight

Product Information:

Round recessed luminaire with fixed optics available in black and white and in three different sizes with perimeter frame with high efficiency standard flow LED source to obtain an excellent luminous efficiency ratio in general lighting applications. Emitting unit composed of a transparent prismatic reflector in PMMA, combined with a flux recuperator and diffuser screen, both made of PMMA, integrated into the external polycarbonate structure. The painted die-cast aluminum heat sink body incorporates the steel wire fixing springs. Power supply unit connected to the appliance.

Equipped with Opti Diamond, the result of a careful study of materials, engineering and workmanship such as to guarantee optimal brilliance and a unique splendor, like a diamond. This effect is even more emphasized by the slightly bright external frame, which underlines its preciousness in the ceiling.

On request also available in a dimmable version and with emergency function.

Characteristics:

• Material: Die-cast aluminium
• LED light source: 12.9 - 24.3 - 36.5W
• Color temperature: 3000K Warm white - 4000K Neutral white
• Power: Small 12.9W - Medium 24.3W - Large 36.5W
• Light power: Small 3000K and 4000K 1691 lm - Medium 3000K and 4000K 3094 lm - Large 4696 lm 3000K 4929 lm 4000K
• Light beam: general light
• NOT dimmable
• Colors: White, Black
• Indoor: IP20
• Wiring: Electronic operating components included - power connection on the quick connection terminals of the driver.

Dimensions:

• Small: 69xØ105mm - Installation hole Ø96mm
• Medium: 99xØ163mm - Installation hole Ø154mm
• Large: 96xØ225mm - Installation hole Ø212mm

For more information, see the attached PDF
