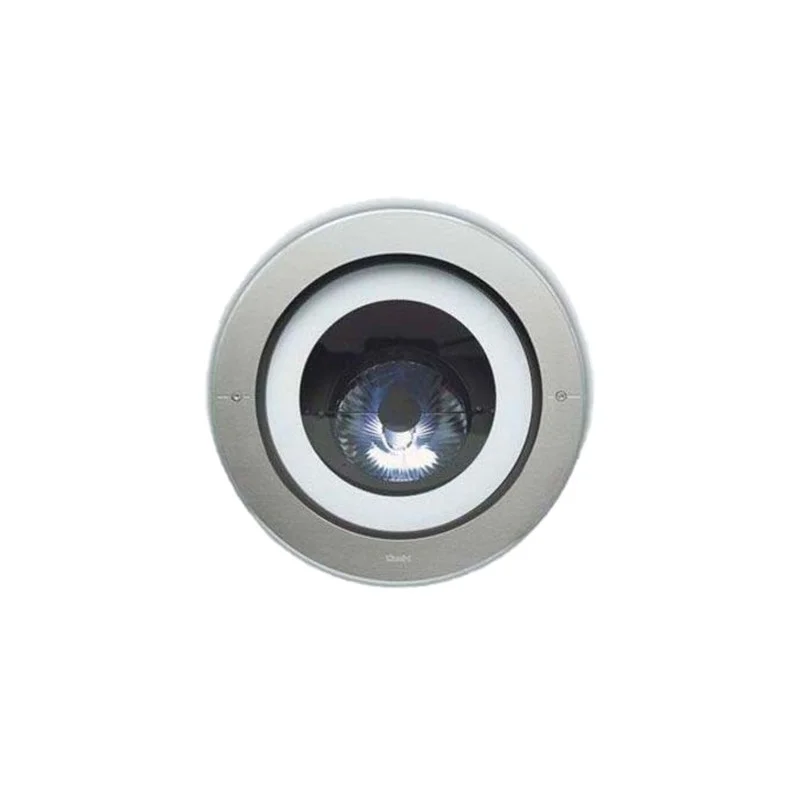

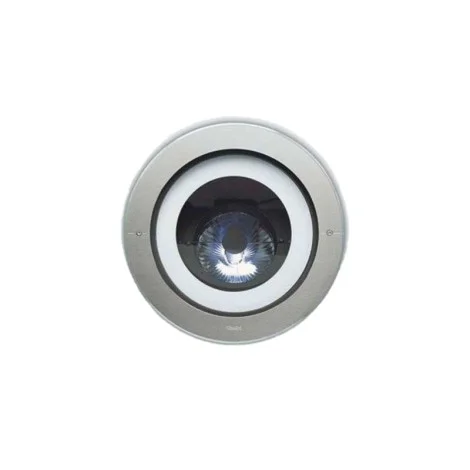

iGuzzini Light Up Walk Floor Recessed 70W Outdoor IP67

Product Information:

The outer casing for installation can be ordered separately from the optical assembly. Visual comfort is guaranteed by the a black steel antiglare screen. The optical assembly is closed at the top by a hardened sodium-lime glass (thickness 19 mm) with silicone gasket compressed by an AISI 304 stainless-steel frame. The optical assembly houses a hardened sodium-lime intermediate glass (thickness 4 mm) with white silk-screen printing. The lower section houses a decompression box for cascade wiring by 6-pole terminal block and double stainless-steel cable-clamp M24x1.5. This section is connected to the optical assembly through a nickel-plated brass cable clamp M15x1. This makes it easier to open the upper glass by eliminating negative pressure inside the optical assembly and the pump effect on the supply cable. The body-optical assembly is equipped with a locking system with two stainless-steel captive screws on which two extruded aluminium supports can slide. The locking system ensures positioning and anchoring of the optical assembly to the outer casing. The acrylic painting of the body-optical assembly and outer casing guarantees protection against UV rays and the external environment.

•  Metal halide
•  70 / 70 W - light source values
•  Electromagnetic Control gear included
•  Optic: S - Spot 10°
•  Adjustability: rotation
•  Material: Aluminium
•  Size (mm): 410x316, Weight (kg): 14.96
•  Environment: Outdoor
•  Design: iGuzzini

The upper rim of the installed outer casing should protrude out of the pavement by 1mm MAX. The outer casing has an upper diameter of 386 mm, a lower diameter of 495 mm, and is 350 mm high.
