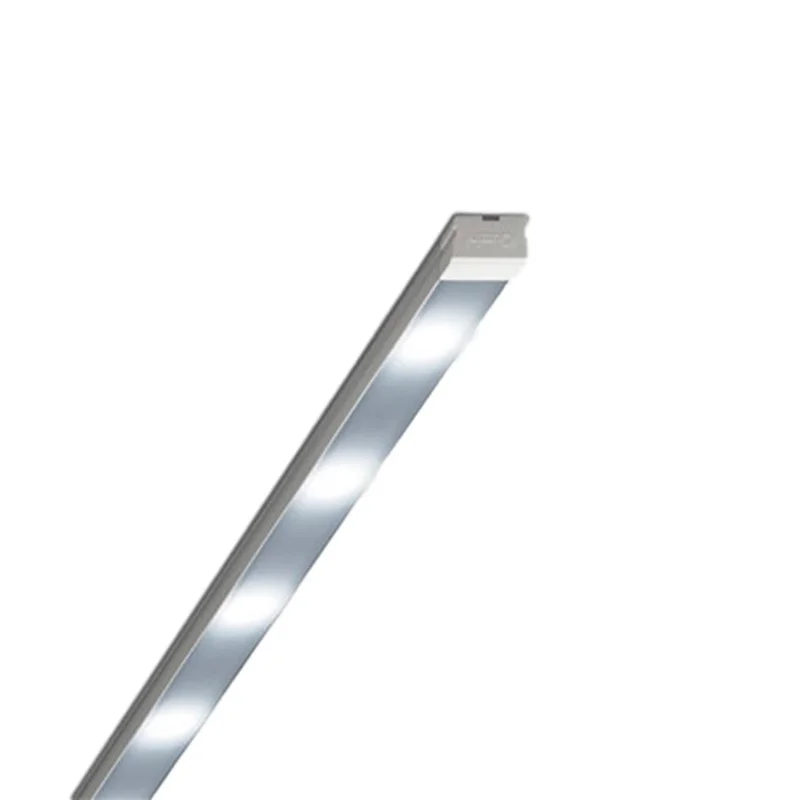

iGuzzini Underscore LED 3,4W 4000K 265lm Linear Profile

Product Information:

Code M846
Module version 3 LED 24Vdc high emission (3W total) - white, shades neutral white (4200K) - color rendering index (CRI) 80. Power supply not included.
LED 3.4W, 265lm
Luminous efficiency (lm / W): 36
4000K CRI80
Dimensions (mm): 250x26x13, Weight (kg): 00:07

Product-profile drive for linear lighting LED, arranged for surface mounting. High Flux version suitable for lighting display cases, shelves, display corners and outer edges.
Structure in extruded aluminum bar, linear screen in opal polycarbonate diffuser. Side caps and end caps in molded polycarbonate; removing the terminals you can connect directly with later profile thanks to a practical system of quick coupling.

Optics: G - General lighting
Adjustability: Fixed
Group separate electronic
Material: Extruded aluminum
Environment: Indoor IP40
Constant voltage power supplies to be ordered separately

Installation: Fixing snap profile no included clips (MWJ8); the clips are fixed to the installation surface by means of screws and bolts (not included).

Notes
For mounting, connections and power use components available to order separate coding. For systems consistent and relevant lengths it is possible to use electronic ballasts DIN: 9910 (72W) - 9911 (96W) - 9912 (240W)
