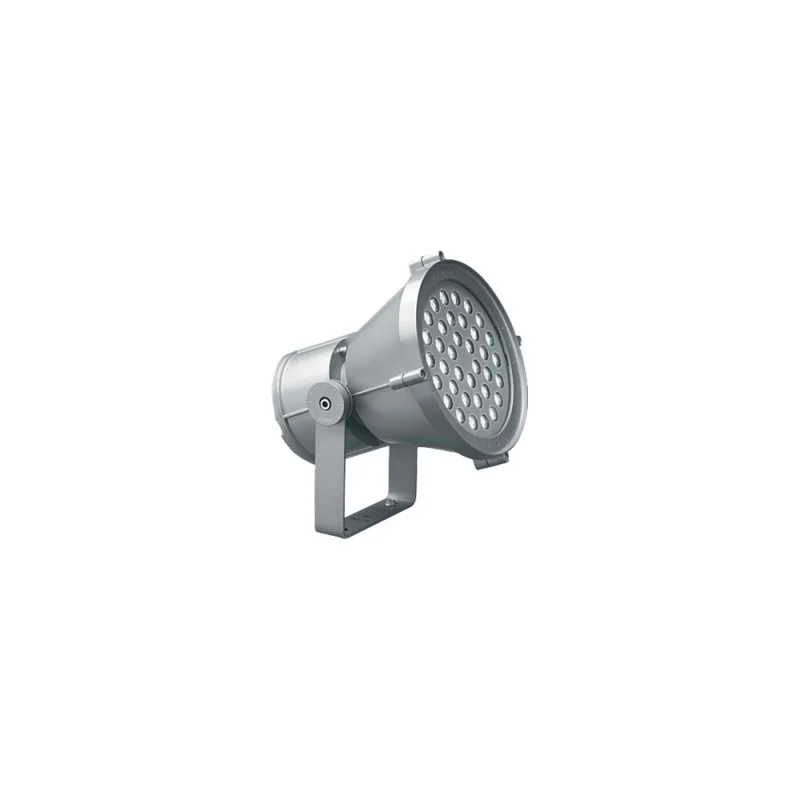

IGuzzini Maxywoody ø315 led RGB Tunable white floodlight IP67

Product Information:

Maxywoody 315mm outdoor projector available both in RGB, multicolour or in tunable white variant which allows you to decide the temperature of the various shades of white from 2700° warm white to 5000° cold white.

Product details

Direct light luminaire, for use with LED light sources.

Installation on the ground, wall (via fisher) and on pole systems.

Consisting of optical compartment and bracket.

Optical compartment and frame in aluminum alloy; tempered sodium-calcium sealing glass, colorless transparent, thickness 4 mm; superpure aluminum reflector.

Double adjustability of the optical assembly.

Graduated scale with mechanical aiming lock.

RGB and WNC (Tunable White) LED versions complete with power supply and DMX512-RDM electronic control card.

Luminaire designed for pass-through wiring.

All screws used are A2 stainless steel.

Technical data

• Light power: RGB 2020lm - Tunable White 5100lm
• Control type: DMX-RDM
• Dimensions:ø313x319
• Color: Grey
• Designer: Mario Cucinella
• Material: Aluminum
• Power:31W RGB and 35W Tunable White
• Water resistance: IP67
• Impact resistance: IK08
• Assembly:Applique, pole arm, fixed to the ground, wall, ceiling, u-bracket

For more information, see the attached PDF.
