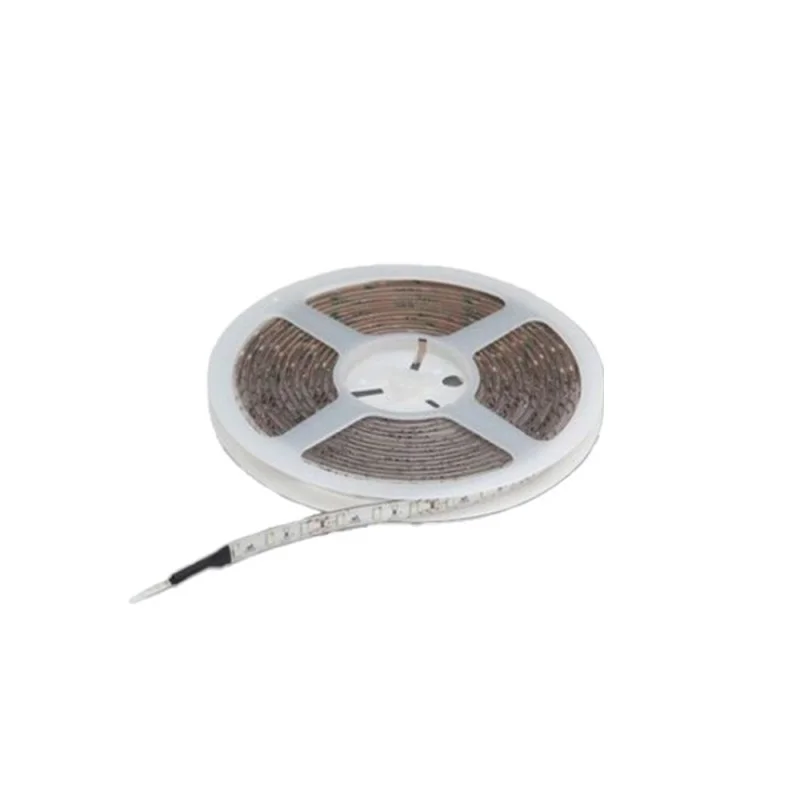

IGuzzini Underscore15 LED Strip Tube 4.8W 12V IP65 5m

Product Information:

The ends of the circuits are fitted with connectors with IP20 protection, therefore we recommend that the strips be used indoors. Supplied in 5-metre long coils wound on suitable supports; the pack includes a connections kit for in line or power supply connections. The back of the circuit is coated with adhesive for rapid application; mounting accessories are available for less simple installations. The strip can be cut at a centre-to-centre distance of 50 mm (minimum 3 LEDs); if intermediate cuts are made, ensure that the cut ends are carefully sealed. LED features: warm white 3000K colour (the value is an indication only and may vary slightly) 60 LEDs/m flare angle 120° 24W total power supply 12V a maximum of 3 coils can be connected in line.Ballasts to be ordered separately

Installation

rapid installation with adhesive; clips are available for added fixing guarantees (code MWG2: 10 pieces) and rigid aluminium supports (code MWG1: 5 pieces x 1m)

• LED
• 4,8W 410lm 2700K CRI 70
• 4,8W 410lm 3000K CRI 80
• 4,8W 470lm 4000K CRI 75
• 4,8W 420lm 6000K CRI 70
• Luminous Efficacy (real value): 81lm/W
• Optic: G - General lighting
• Adjustability: fixed
• Material: die-cast aluminium
• Size (mm): 5000x10x3, Weight (kg): 0.21
• Environment: Indoor/outdoor
