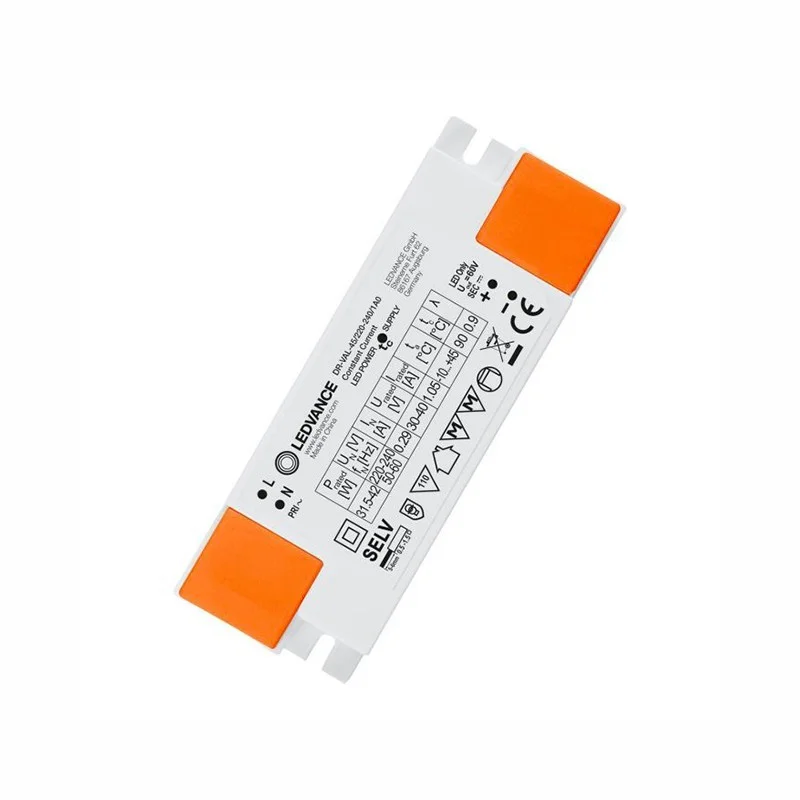

Power supply DR-VAL-45/220-240/1A0 for led, small miniaturized driver in constant current from 1050mA constant current from 45W 60Volt Max. Dimensions: 116x41x25mm
Read more ...Product benefits
Suitable for operation with many LEDs and COB LEDs
Excellent price / performance ratio
3 year guarantee
Quick and easy installation
High efficiency and reliability
Application areas
Suitable for LED luminaires and LED modules
Applicable for luminaires of protection classes I and II
For internal SELV installations
Offices, shopping centers, hospitals, restaurants, hotels
Product features
Power 45 W
Integrated cable clamp for independent installation
Duration: up to 35,000 h (at the maximum temperature of tc)
Protection type: IP20
Constant and dedicated output current
Low flicker <5%
Power supply: 220- 240 V
Operating frequency: 50/60 Hz
Operation with less than 60V: Extra Low Safety Voltage (SELV)
Short circuit and overload protection
Be the first to ask a question about this product!
Reference: DRDSPFM20500
DR DS-PFM-20/220-240/500 power supply for miniaturized led in constant current from 250mA-350mA-450mA-500mA and 20W.
Reference: DRPCPFM18350
Power supply DR PC-PFM-18/220-240/350 for led, small miniaturized driver, phase cut dimmable (PHASE-CUT) in constant current from 350mA constant current from 18W 32-54Volt Max. Dimensions: 130x43x30mm
Reference: DRPFMDALI601A4
Ledvance electronic power supply DR DALI-PFM-60 / 220-240 / 1A4 multipower in direct current from 700mA to 1.40A adjustable with DALI system (DALI2).
Reference: OTFIT401A0CS
In Voltage 220/240V, Output constant current, Output current 800/900/950/1050 mA, MAX 34W 800 mA, MAX 38W 900 mA, MAX 40W 950 mA, MAX 44W 1050 mA.
Reference: 145024
Element Driver constant voltage LED from 24V DC up to 90W with overload and overtemperature protection.
Reference: DRPFMDALI26700
Ledvance electronic power supply DR DALI-PFM-26/220-240/700 multipower in direct current from 150mA to 700mA adjustable with DALI system (DALI2), maximum power consumption 26.3W.
