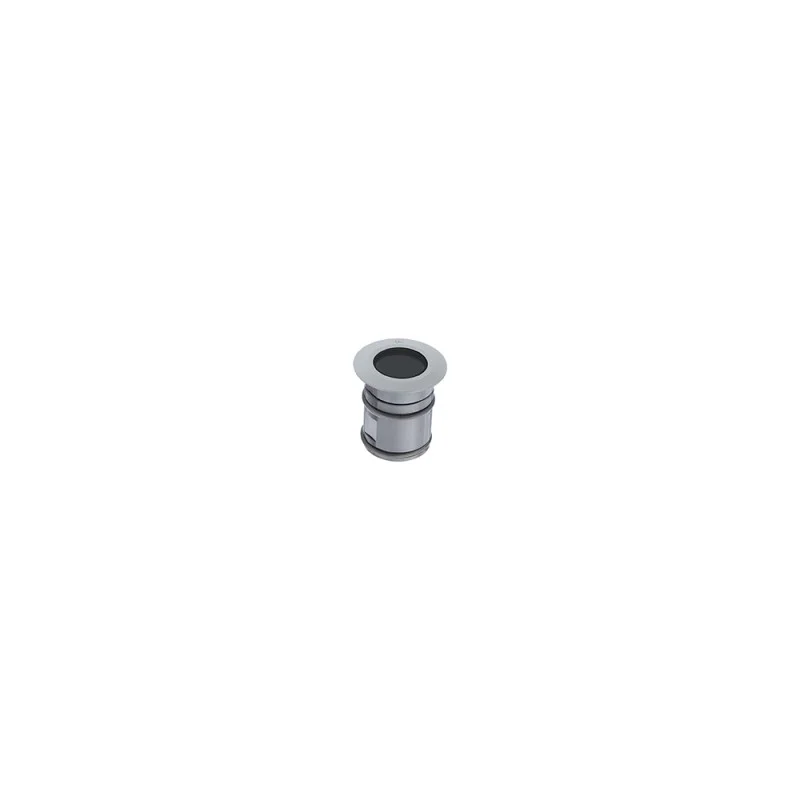

Luce & Light Bright 1.0 316L recessed spotlight for outdoor 500mA

Product Information:

Outdoor spotlight not suitable for immersion in swimming pools and fountains, walk-over recessed (ceiling, wall, floor) 2W with screen in transparent tempered extra-clear glass. Degree of resistance: IK10 with IPS protection system (Intelligent Protection System) which protects the luminaires from water infiltration which can occur in the event of splicing errors between the cables for applications from outside and immersion. This L&L patented innovation also provides electrical protection against reverse polarity, hot plug, ESD and overvoltages that can occur in the event of malfunctions in the electrical system. On request it is available in 2200K warm light, red, green and blue light color tones with 10°, 21°, 21° sharp, 54° sharp, 15°x38° beam angle.

Characteristics:

• Body material: Body and ring nut in AISI316L stainless steel
• Weight: 200g
• Light output: 195lm
• Color temperature: 3000K warm light - 4000K neutral light
• Beam angle: 10° - 43° - Diffused
• Power supply: 500mA max
• Operating temperature: -20°C — +45°C
• Dimensions: Ø35x52mm
• Maximum appliance temperature: 50°C (Ta 25°C)
• Recessed hole: Ø30 mm
• Dimmable
• Driver not included
• Including 1.5 m neoprene cable H05RN-F 2x0.35/0.75 Ø6.3 mm
• CRI Color Rendering Index: 80
• Led source: 1 power LED, 2 step MacAdam, 60000h L90 B10 (Ta 25°C)
• Degree of protection: IP65-IP68
• Resistance grade: IK10
• Glow wire test: 960°
• Photobiological safety: compliant with IEC TR 62778:2014
• Insulation class: class III
• Technical volume for dissipation: Ø80x100 mm
• Energy consumption class: F (light source) in accordance with EU 2019/2015
• Tested and approved by E.O.L. test (End Of Line test) with functional test and verification of the electrical absorption parameters.

For more information, see the attached PDF.
