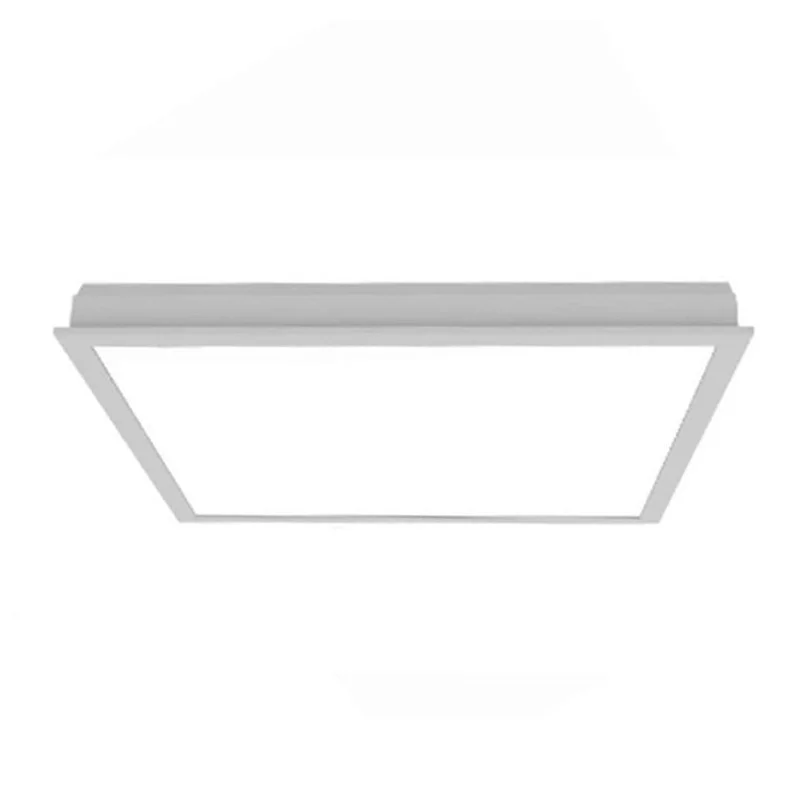

Osram Light LED Panel 60x60 50W 4000K 4200lm 120° Recessed

Product Information:

LED 60x60 recessed panel by Osram LEDVANCE, 50W power, luminous flux 4200 lumens and color temperature 4000K. Aluminum body and PMMA diffuser. The combination of high-performance LEDs and diffuse-distribution opal luminaire cover ensures a uniformly illuminated light emission surface and homogeneous distribution of light. 4200lm (50W), the luminaires are ideal for directly replacing traditional louvre luminaires with T16/T26 lamps.

Applications:

• Office and conference room
• Reception and foyer
• Corridors and elevators

Advantages:

• Direcet replacement for traditional models (4x14W/4x18W)
• Energy saving up to 50%
• Very homogeneous light
• External driver (included)
• Aluminum body really thin (just 10,5 mm) and matt white frame

Suspension installation too, thanks to the Suspension kit LEDVANCE (sold separately)

Housing
Housing of sheet steel, traffic white (similar to RAL 9016); cover of PMMA
Mounting instruction
Lay-in mounting in system ceilings without accessories:
. if only the intermediate cavity exactly above the ceiling cut-out is available for installation purposes, the required mounting dimensions are mounting depth ‰¥ 25cm
. if the ceiling cavity to the sides of the ceiling cut-out can be used for recessing (e.g. if no support rods exist as part of the ceiling construction), the required minimum mounting dimension is MTmin= 17cm
Electrical
Luminaire with 3-pole connection terminal, max. 1.5mm²
Lighting technology
Diffuser optic with a homogeneous luminous surface without visible light points | the luminaires on the ceiling have the appearance of illuminated windows and enable the designing with light: light ceilings with individual light windows can be designed as well as wide-area light ceilings | especially uniform distribution of light with minimal reflected glare. UGR22
