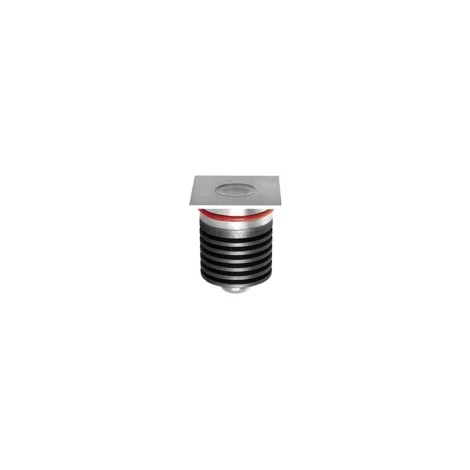

Playled Quadro3 Recessed 3W 12-24V led spotlight carriageable for outdoor

Playled Quadro3 Recessed 3W 12-24V led upight carriageable for outdoor

Brand PLAYLED

$112.91 Save 20%

instead of $141.14

The product can be ordered

More buy more save

If you buy 5 products the price is

Playled Olar Quadro 3 Drive-over recessed LED uplight for outdoor use 3W IP68 in painted aluminum with 40° beam opening and 3000K light tone. Operating voltage 12-24V with formwork included. Made in Italy

Product Information:

Olar3 outdoor recessed spotlight in EN AW 6063 alloy, obtained from CNC protected mechanical machining, with a passivation process. Total screen in high thickness glass. 3 Watt LED source, with three different light temperatures, 3000 Kelvin (warm light), 4000 Kelvin (neutral light) and 6000 Kelvin (cold light) respectively with luminous flux of 265,279 and 292 Lumen. The opening of the light beam can be selected between 10°, 40° and 60°. Equipped with external coating.

Characteristics:

Material: Body in EN AW 6063 alloy. Screen in tempered glass
Voltage: 12-24V
Source: 3W LED (integrated)
Light temperature: 3000K warm light - 4000K neutral light - 6000K cold light
Luminous flux: 3000K 265lm - 4000K 279lm- 6000K 292lm
Opening in degrees: 10° - 40° - 60°
Dimmable
Formwork included
For outdoor use: IP68
Spotlight dimensions: 40x40x53 mm
Formwork dimensions: Ø37x90 mm

For more information, see the attached PDF

picture_as_pdf Datasheet

Available versions

Open Beam:

60° -

40° -

10° -

Light color tone:

4000°K NEUTRAL LIGHT -

3000°K WARM LIGHT -

6000°K COOL LIGHT -

100% original product by

Details:

Data sheet

Reference: ALQ310N
Input voltage: 12-24 V DC
Degree of protection: IP68
Material: Aluminum
Light source: LED
Glass: Transparent
Adjustable power: Dimmable
Watt power: 3 W
Product Color: STEEL COLOR
Number of light sources: 1
Beam angle: 10-40-60
Driver power supply: Without driver
Carriageable: Yes
Formwork: Yes
Compatible current: EU-AUD-USA-UK-JAP
Color rendering index: CRI Greater than 80
