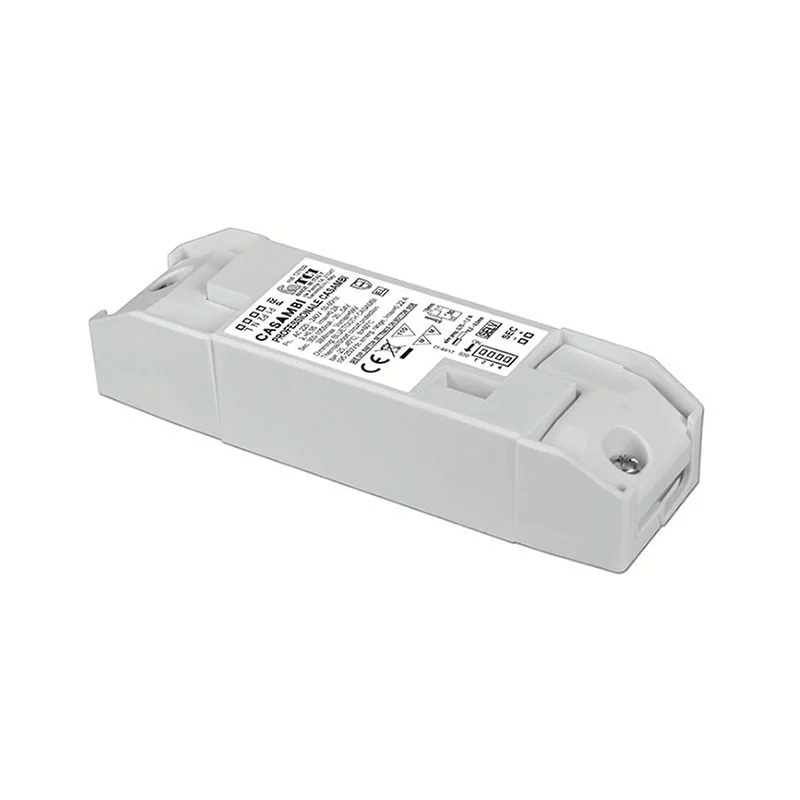

TCI CASAMBI Multipower Direct Current Dimmable Power Supply
  • TCI CASAMBI Multipower Direct Current Dimmable Power Supply
  • TCI CASAMBI Multipower Direct Current Dimmable Power Supply
  • TCI CASAMBI Multipower Direct Current Dimmable Power Supply
TCI CASAMBI Multipower Direct Current Dimmable Power Supply
TCI CASAMBI Multipower Direct Current Dimmable Power Supply TCI CASAMBI Multipower Direct Current Dimmable Power Supply TCI CASAMBI Multipower Direct Current Dimmable Power Supply

TCI CASAMBI driver Wireless Direct Current dimmable


Trustpilot
$92.86 Save 50%
instead of $185.71
24 / 48 hours

More buy more save

If you buy 5 products the price is
If you buy 10 products the price is

The CASAMBI Professional TCI is a direct current multipower power supply with DIP-SWITCH to select the required DC, complete with antenna.

Read more ...
Select Version
local_shipping Shipped in 1-2 days
check
In stock
7 Items

Quantity

payments You can pay in installments with PAYPAL OR SCALAPAY
Description
Product Information:

Complete with antenna with a wireless control unit with 0/1 - 100% brightness adjustment via PUSH SWITCH function and APP or compatible devices for CASAMBI WIRELESS module integrated.

Features

. Multipower driver supplied with dip-switch for the selection of the output current with integrated wireless CASAMBI receiver.
. IP20 independent driver, for indoor use (PROFESSIONALE CASAMBI).
. Class II protection against electric shock for direct or indirect contact (PROFESSIONALE CASAMBI).
. Driver for built-in use (PROFESSIONALE CASAMBI BI).
. It can be used for lighting equipment in protection class I and II (PROFESSIONALE CASAMBI BI).
. Active Power Factor Corrector.
. Current regulation ±5 % including temperature variations.
. Input and output terminal blocks on opposite sides (wire cross-section up to 1,5 mm2 / AWG15).
. Clamping screws on primary and secondary circuits for cables with diameter: min. 2 mm - max. 9 mm (PROFESSIONALE CASAMBI).
. Driver can be secured with slot for screws. Protections:
- against overheating and short circuits; - against mains voltage spikes;
- against overloads.
. Thermal protection = C.5.a.
. Do not apply within 0,2 m from human body.

Operation Mode

. Light regulation 0/1 - 100 % by means of PUSH SWITCH function and APP or compatible devices for CASAMBI integrated WIRELESS module.
. Full AM DIMMING: 1-100% (minimum current: 7 mA).
. Light regulation 0/1 - 100 % by means of PUSH SWITCH function (mains voltage):
-  a short push to turn on and off;
-  a longer push to increase or decrease light intensity;
-  regulation automatically stops at minimum and maximum values;
-  for another on, regulation or off command, release the push button and give the desired command again;
-  dimming level memory at mains restore.
. Maximum length of the cable, from push button to last driver, must be max. 15 m / 49 ft. In case of applications where the cable is longer than 15 m / 49 ft, keep this separate from the 240 V mains cable.
. ATTENTION: only use normally open push buttons with no incorporated warning light.
Selection of constant output current by dip-switch
Variants:

16W  10...54V max 300 mA cost.

18,5W  10...54V max 350 mA cost.

21,5W 10...54V max 400 mA cost.

24W  10...54V max 450 mA cost.

27W  10...54V max 500 mA cost.

29,5W 10...54V max 550 mA cost.

32W  10...54V max 600 mA cost.

35W  10...54V max 650 mA cost.

36W  10...51V max 700 mA cost.

38W  10...50V max 750 mA cost.

38W  10...47V max 800 mA cost.

38W  10...44V max 850 mA cost.

38W  10...42V max 900 mA cost.

38W  10...40V max 950 mA cost.

38W  10...38V max 1 A cost

38W  10...36V max 1,05 A cost


picture_as_pdf Datasheet
Warranty 2 Years
100% original product by

Details:
check
In stock
7 Items

Data sheet

ean13
8053306656978
Reference
127630
Input voltage
220-240 V
Depth in mm
22.3
Width in mm
30
Length in mm
97-146,5
Degree of protection
IP20
Material
Pvc
Light source
LED OR HALOGEN
Adjustable power
Dimmable
Control system
CASAMBI
Driver power supply
With driver
