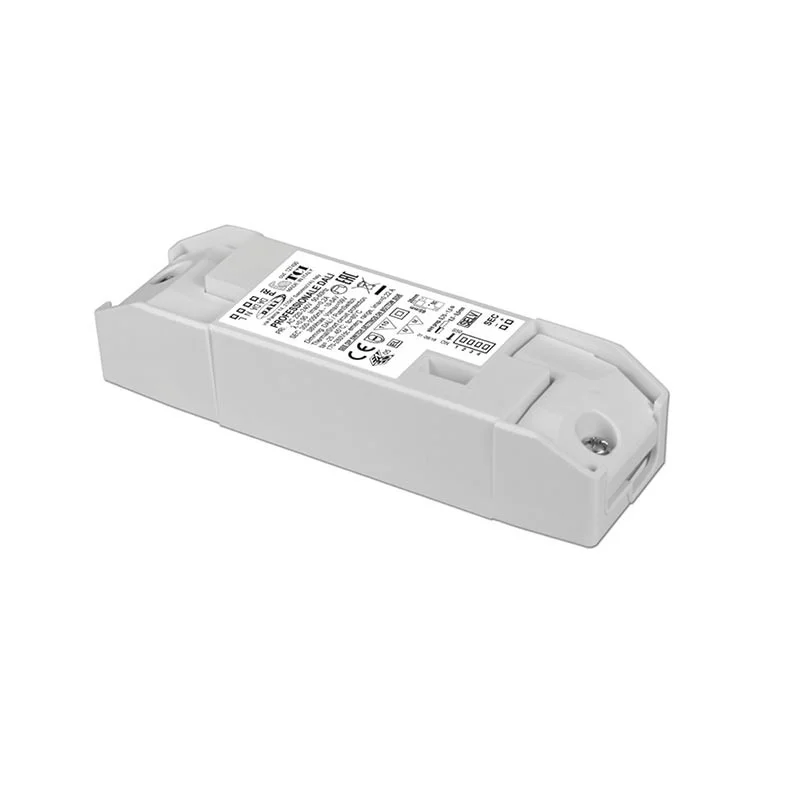

TCI Professional 38W DALI Direct Current Electronic Driver

Product Information:

• Multipower driver supplied with dip-switch for the selection of the output current.
• IP20 independent driver, for indoor use.
• Class II protection against electric shock for direct or indirect contact.
• Active Power Factor Corrector.
• Current regulation ±5 % including temperature variations.
• Input and output terminal blocks on opposite sides (wire cross-section up to 1,5 mm2 / AWG15).
• Clamping screws on primary and secondary circuits for cables with diameter: min. 2 mm - max. 9 mm
• Driver can be secured with slot for screws.
• Protections:
• - against overheating and short circuits; - against mains voltage spikes;
• - against overloads.
• Thermal protection = C.5.a.

Nominal voltage 220-240V, dimensions 146,5x44x30 mm.

Dip-switc selection of the output current Variants:

16W 54V max. 300mA const.

18W 54V max. 350mA const.

21W 54V max. 400mA const.

24W 54V max. 450mA const.

27W 54V max. 500mA const.

29W 54V max. 550mA const.

32W 54V max. 600mA const.

35W 54V max. 650mA const.

38W 54V max. 700mA const.

38W 51V max. 750mA const.

38W 48V max. 800mA const.

38W 45V max. 850mA const.

38W 43V max. 900mA const.

38W 40V max. 950mA const.

38W 38V max. 1 A cost.

38W 36V max. 1.05 at cost.

Operation mode:

Features DALI-2 dimming (0/1 - 100 %, minimum output current 7 mA):

- memory function for sets or light groups;

- recall of stored functions;

- compatible with standard DALI interfaces.

Dimming method is AMPLITUDE.

Light regulation 0/1 - 100 % by means of PUSH SWITCH function (mains voltage):

- a short push to turn on and off;

- a longer push to increase or decrease light intensity;

- regulation automatically stops at minimum and maximum values;

- for another on, regulation or off command, release the push button and give the desired command again;

- dimming level memory at mains restore
