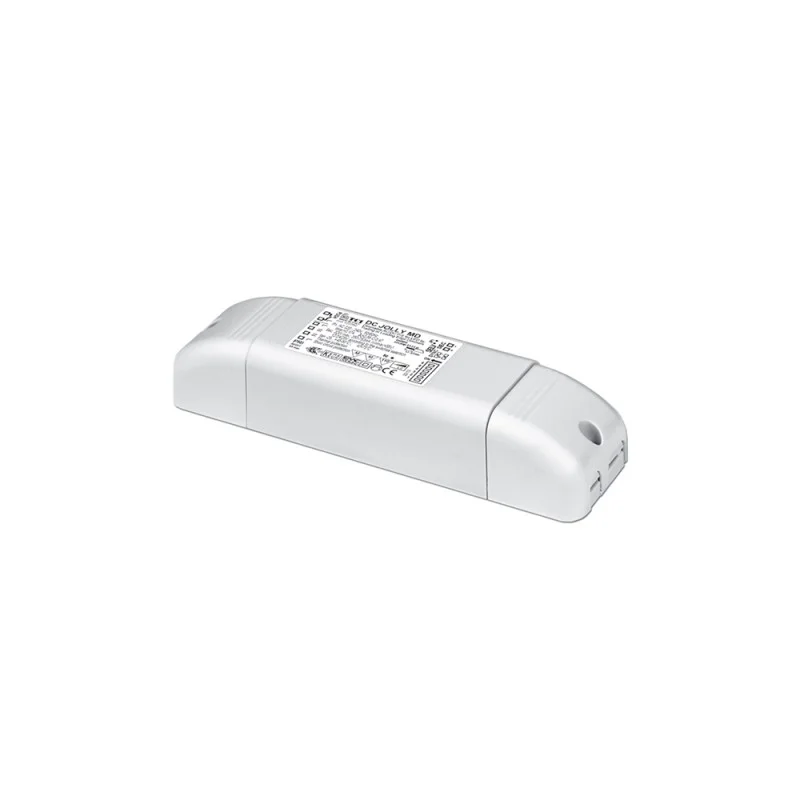

TCI Driver DC JOLLY MD LC led trailing leading edge

Product Information:

Features

Double input terminal blocks to loop other driver.

Multipower driver supplied with dip-switch for the selection of the output current.

IP20 independent driver, for indoor use.

Class II protection against electric shock for direct or indirect contact.

Active Power Factor Corrector.

Current regulation ±5 % including temperature variations.

Input and output terminal blocks on the opposite side (wire cross section up to 2,5 mm2 / AWG13).

Clamping screws on primary and secondary circuits for cables with diameter: min. 3 mm - max. 8 mm.

Protections:

• against overheating and short circuits;
• against mains voltage spikes;
• against overloads.
• Thermal protection = C.5.a.
• Operating mode

Operation Mode

Regulating driver with "phase cut-off" dimmer IGBT, TRIAC and PUSH.

Light regulation 0/0,5 - 100 % by means of PUSH function (mains voltage):

• a short push to turn on and off;
• a longer push to increase or decrease light intensity;
• regulation automatically stops at minimum and maximum values;
• for another on, regulation or off command, release the push button and give the desired command again;
• dimming level memory at mains restore.

Maximum length of the cable, from push button to last transformer, must be max. 15 m / 49 ft. In case of applications where the cable is longer than 15 m / 49 ft, keep this separate from the 220 - 240 Volt mains cable.

ATTENTION: only use normally open push buttons with no incorporated warning light.

Max. 10 synchronised drivers of which only one can be controlled (1 Master + 9 Slaves).

Synchronization cable is separately supplied.

Constant current

- 7,2W - V2...48 - 150 mA cost

- 9,5W - V2...48 - 200 mA cost.

- 12W - V2...48 - 250 mA cost.

- 14,5W - V2...48 - 300 mA cost.

- 17W - V2...48 - 350 mA cost.

- 19,5W - V2...48 - 400 mA cost.

- 21,5W - V2...48 - 450 mA cost.

- 24W - V2...48 - 500 mA cost.

Costant voltage

-6W - 12 cost - 500mA max

-12W - 24 cost - 500mA max

-14W - 28 cost - 500mA max
