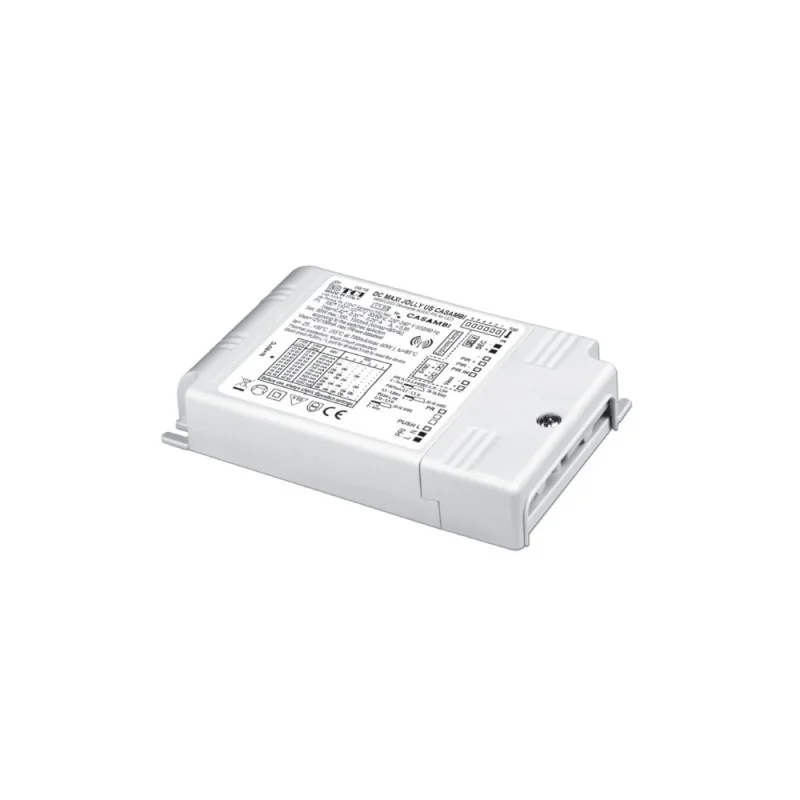

TCI Driver LED MAXI JOLLY 50W US CASAMBI

Product Information:

Features

Multipower driver supplied with dip-switch for the selection of the output current with integrated wireless CASAMBI module.

IP20 independent driver, for indoor use (DC MAXI JOLLY SV CASAMBI).

Class II protection against electric shock for direct or indirect contact (DC MAXI JOLLY SV CASAMBI).

Driver for built-in use (DC MAXI JOLLY SV CASAMBI BI).

It can be used for lighting equipment in protection class I and II(DC MAXI JOLLY SV CASAMBI BI).

Active Power Factor Corrector.

Analogical input (NTC) for thermal sensor connection.

Auxiliary output 12 V max. 100 mA.

Current regulation ±5 % including temperature variations.

Input and output terminal blocks on the same side(wire cross-section up to 2,5 mm2 / AWG13).

Clamping screws on primary and secondary circuits for cableswith diameter: min. 3 mm - max. 8 mm (DC MAXI JOLLY SV CASAMBI).

Protections:

- against overheating and short circuits;

- against mains voltage spikes;

- against overloads.

Thermal protection = C.5.a.

Operation Mode

Light regulation 0/0,5 - 100 % by means of PUSH function and APP or compatible devices for CASAMBI integrated WIRELESS module.

Light regulation 0/0,5 - 100 % by means of PUSH function (mains voltage):

- a short push to turn on and off;

- a longer push to increase or decrease light intensity;

- regulation automatically stops at minimum and maximum values;

- for another on, regulation or off command, release the push button and give the desired command again;

- dimming level memory at mains restore.

Possibility to use PUSH function to 4/5 drivers.

Maximum length of the cable, from push button to last driver, must be max. 15 m / 49 ft. In case of applications where the cable is longer than 15 m / 49 ft, keep this separate from the 110 - 240 Volt mains cable.

ATTENTION: only use normally open push buttons with no incorporated warning light

-18,5 (18,5)W - 10...53V 350 mA cost.

-21 (21)W - 10...53V 400 mA cost.

-23,5 (23,5)W - 10...53V 450 mA cost.

-26,5 (26,5)W - 10...53V 500 mA cost.

-29 (29)W - 10...53V 550 mA cost.

-31,5 (31,5)W - 10...53V 600 mA cost.

-34,5 (34,5)W - 10...53V 650 mA cost.

-37 (37)W - 10...53V 700 mA cost.

-39,5 (39,5)W - 10...53V 750 mA cost.

-42 (40)W - 10...53V 800 mA cost.

-45 (40)W - 10...53V 850 mA cost.

-47,5 (40)W - 10...53V 900 mA cost.

-50 (40)W - 10...52V 950 mA cost.

-52 (40)W - 10...52V 1 A cost.

-54,5 (40)W - 10...52V 1,05 A cost.

-57 (40)W - 10...52V 1,1 A cost.

-60 (40)W - 10...52V 1,15 A cost.

-62 (40)W - 10...52V 1,2 A cost

*In brackets the powers in 110/127V

For more information, see the attached PDF
