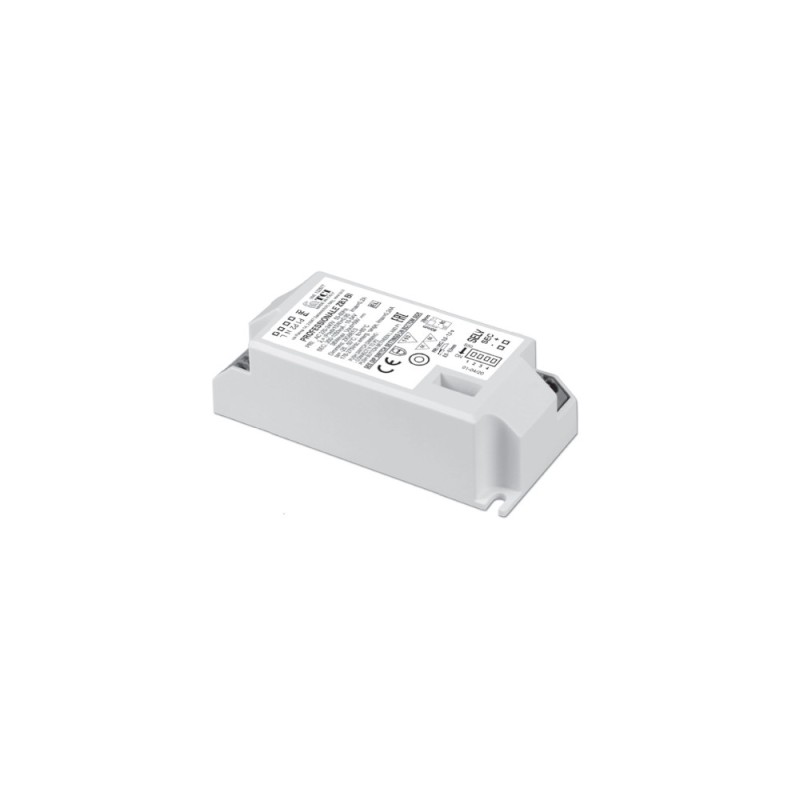

TCI Driver LED PROFESSIONALE 38W ZB3 BI ZIGBEE dim

Product Information:

Features

Multipower driver supplied with dip-switch for the selection of the output current with integrated wireless ZIGBEE module.

Driver for built-in use.

It can be used for lighting equipment in protection class I and II.

Active Power Factor Corrector.

Current regulation ±5 % including temperature variations.

Input and output terminal blocks on opposite sides (wire cross-section up to 1,5 mm2 / AWG15).

Driver can be secured with slot for screws.

Protections:

 - against overheating and short circuits;

 - against mains voltage spikes;

 - against overloads.

Thermal protection = C.5.a.

Operation Mode

Light regulation 0/1 - 100 % by means of PUSH SWITCH function and standard ZIGBEE devices for ZIGBEE integrated WIRELESS module.

Designed to work with ZIGBEE systems.

Full AM DIMMING: 1-100%.

Light regulation 0/1 - 100 % by means of PUSH SWITCH function (mains voltage):

- a short push to turn on and off;

- a longer push to increase or decrease light intensity;

- regulation automatically stops at minimum and maximum values;

- for another on, regulation or off command, release the push button and give the desired command again;

- dimming level memory at mains restore.

Maximum length of the cable, from push button to last driver, must be max. 15 m / 49 ft. In case of applications where the cable is longer than 15 m / 49 ft, keep this separate from the 240 V mains cable.

ATTENTION: only use normally open push buttons with no incorporated warning light.

-16W -  10...54V - 300 mA cost.

-18,5W -  10...54V - 350 mA cost.

-21,5W -  10...54V - 400 mA cost.

-24W -  10...54V - 450 mA cost.

-27W -  10...54V - 500 mA cost.

-29,5W -  10...54V - 550 mA cost.

-32W -  10...54V - 600 mA cost.

-35W -  10...54V - 650 mA cost.

-36W -  10...51V - 700 mA cost.

-38W -  10...50V - 750 mA cost.

-38W -  10...47V - 800 mA cost.

-38W -  10...44V - 850 mA cost.

-38W -  10...42V - 900 mA cost.

-38W -  10...40V - 950 mA cost.

-38W -  10...38V - 1 A cost.

-38W -  10...36V - 1,05 A cost.

For more information, see the attached PDF

TCI wireless products belonging to this family have as a plus the ZigBee standard protocol that makes them compatible with a very wide range of ZigBee devices already available on the market. The capacity of this system is highly extended as it is based on a mesh network, while all the easyto-fi nd accessories guarantee its extreme fl exibility in terms of building an ad-hoc solution. Our ZigBee products are ideal also for all those applications requiring both on-site and remotecontrol to achieve important cost savings, thanks to the scheduling via gateway and the monitoring of consumptions  with a wattmeter. All the information can be collected and stored in the Cloud.
