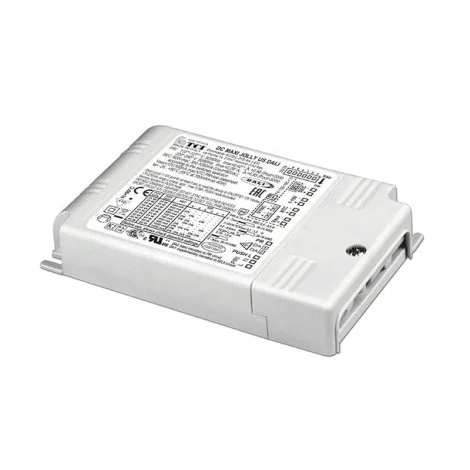

TCI LED Driver DC MAXI JOLLY US DALI 60W 1-10V Push Dimmable

Product Information:

Features
. Multipower driver supplied with dip-switch for the selection of the output current.
. IP20 independent driver, for indoor use
. Class II protection against electric shock for direct or indirect contact .
. Driver for built-in use .
. It can be used for lighting equipment in protection class I and II .
. Active Power Factor Corrector.
. Analogical input (NTC) for thermal sensor connection.
. Auxiliary output 12 V max. 100 mA.
. Current regulation ±5 % including temperature variations.
. Input and output terminal blocks on the same side (wire cross-section up to 2,5 mm2 / AWG13).
. Clamping screws on primary and secondary circuits for cables with diameter: min. 3 mm - max. 8 mm.
. Protections:
- against overheating and short circuits;
- against mains voltage spikes;
- against overloads.
. Thermal protection = C.5.a.

Dimensions 124x79x22 mm

Operation Mode

. Light regulation 0/1 - 100 % by means of PUSH function, 0/1...10 V interface (I=1 mA) or 100 Kohm potentiometer and DALI / DALI-2 .
. Default dimming AM+PWM: 1-25% PWM 2 kHz+25-100% AM (NO SYNC).
. Full PWM dimming (240 Hz - 1-100%) for PUSH/1-10V available by short circuit of NTC port during switch on of the driver, without DALI port powered. Same operation to reset to AM+PWM.
. Full PWM dimming (240 Hz - 1-100%) for DALI available by short circuit of NTC port during switch on of the driver, with DALI port powered.
Same operation to reset to AM+PWM.
. Full AM DIMMING: 1 - 100%.
. Features DALI / DALI-2 dimming:
- memory function for sets or light groups;
- recall of stored functions;
- compatible with standard DALI interfaces.
. Light regulation 0/1 - 100 % by means of PUSH function (mains voltage):
- a short push to turn on and off;
- a longer push to increase or decrease light intensity;
- regulation automatically stops at minimum and maximum values;
- for another on, regulation or off command, release the push button and give the desired command again;
- dimming level memory at mains restore.
. Possibility to use PUSH function to 4/5 drivers without sync cable.
. Maximum length of the cable, from push button to last driver, must be max. 15 m / 49 ft. In case of applications where the cable is longer than 15 m / 49 ft, keep this separate from the 110 - 240 Volt mains cable.
. ATTENTION: only use normally open push buttons with no incorporated warning light.
. Short circuit 1...10V port for at least 5 sec to reset the device to ON/OFF & 0/1-10V modes.
. Specific dimming terminal connection with a 0/1...10 Vdc electronic potentiometer (0/1-10 V local dimming, double insulation required for external connection).
. Max. 10 synchronised drivers of which only one can be controlled (1 Master + 9 Slaves of any JOLLY Series). Only for full PWM dimming (4).
. Synchronization cable is separately supplied.

Dip-switc selection of the output current Variants:

25W (25) 2 ... 74V 350 mA const

35W (35) 2 ... 72V 500 mA const.

39W (39) 2 ... 72V 550 mA const.

46W (40) 2 ... 72V 650 mA cost.

50W (40) 2 ... 72V 700 mA const.

54W (40) 2 ... 72V 750 mA const.

60W (40) 2 ... 70V 850 mA cost.

60W (40) 2 ... 66V 900 mA const.

60W (40) 2 ... 60V 1.00 A const.

60W (40) 2 ... 57V 1.05 A cost.
