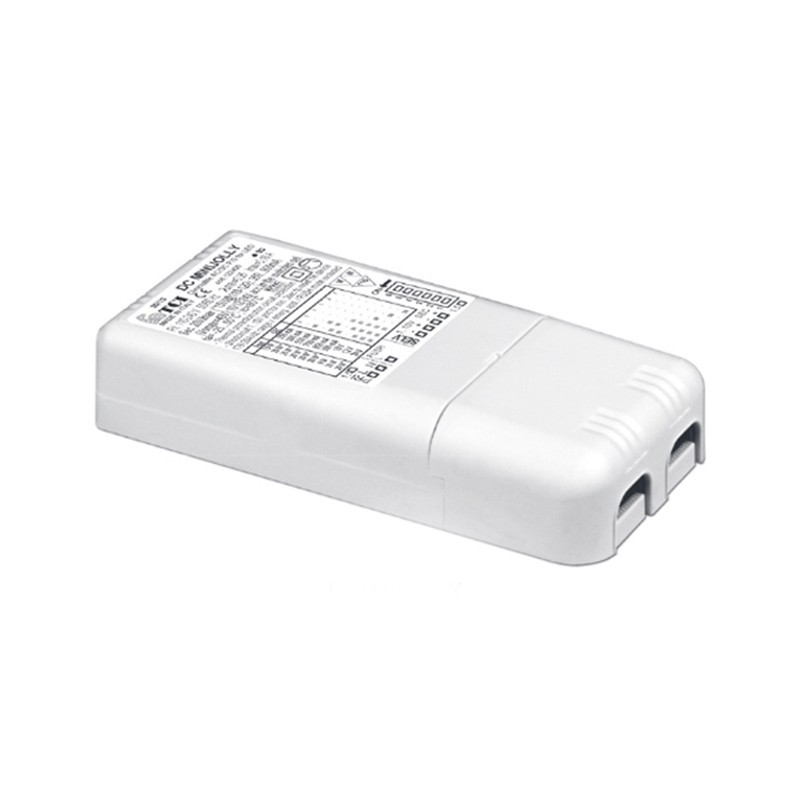

TCI LED Driver DC MINI JOLLY LC 1-10V, Push Dimmable

Product Information:

Multi-power power supply equipped with dip-switch for selecting the output current.

Independent IP20 power supply, for indoor use

Protected in class II against electric shocks for direct and indirect contacts

Active PFC.

Current regulated ± 5% including temperature variations.

Input and output terminals on the same side (cable section up to 1.5 mm2 / AWG15).

Cable clamp on primary and secondary for cables with diameter: PRI 5-8 mm / SEC 3-5 mm

Rated voltage 100-240V

Dimensions 110x52x22 mm

Protections:

- thermal and short circuit;

- against network extra-voltages;

- against overloads.

- Thermal protection = C.5.a.

- Double output impedance for use in household appliances.

Selection of the output constant current by dip-switch:

5,3W 20 ... 53V max 100 mA constant.

7,5W 10 ... 53V max 140 mA constant

9,5W 2 ... 53V max 180 mA constant.

12W 2 ... 53V max 220 mA constant

14W 2 ... 53V max 260 mA constant.

16W 2 ... 53V max 300 mA constant

18W 5 ... 36V max 340 mA constant

20W 5 ... 33V max 380 mA constant.

Selection of constant voltage via dip-switch:

9W 24V cost. 0.38 A max

Load regulation:

1) 0 / 0.5 - 100% brightness adjustment via PUSH function, 0/1 ... 10 V interface (I = 0.35 mA) or 100 Kohm potentiometer.

2) 0 / 0.5 - 100% brightness adjustment using the PUSH function (mains voltage L; 170 Kohm):

- short press to switch on and off;

- a long press to increase or decrease the light intensity; - the regulation stops automatically at the minimum and maximum values;

- for a new on, regulation or shutdown command, release the button and give the desired command again.

. The maximum length of the cable, from the button to the last transformer, must be max. 15 m / 49 ft. In case of applications where the cable exceeds 15 m / 49 ft, keep it separate from the 110-240 Volt mains cable.

. ATTENTION: use only normally open pushbuttons without built-in indicator light.

. Equipped with specific terminal for regulation by connecting an electronic potentiometer 0/1 ... 10 Vdc (local dimming 0/1 ... 10 V, for connections external to the luminaire ensure double insulation).
