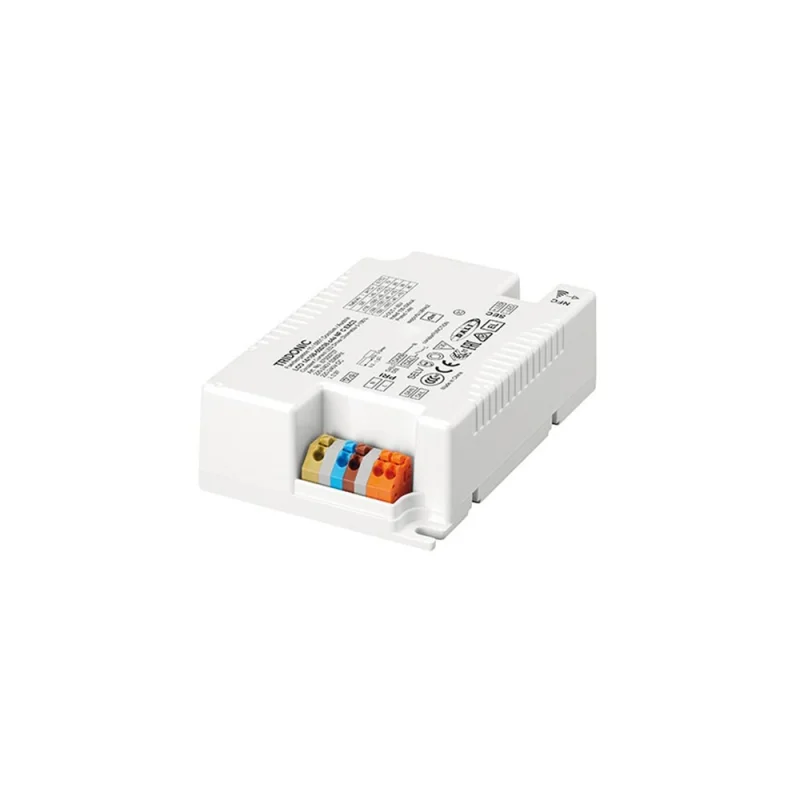

Tridonic Driver 14W 100–500mA 38V DALI dimmable

Product Information:

Product Description

• Outdoor constant current dimmable LED driver for recessed lighting fixtures
• Dimming 5 – 100 % (min. 5 mA)
• For lighting fixtures in insulation class I and II
• Temperature protection according to EN 61347-2-13 C5e
• Programmable output current 100 – 500 mA with NFC, DALI ready2mains
• Max. output power 14W
• Efficiency up to 87%
• Minimum power used in stand-by: < 0.16 W
• Art. No. 28003165: Made in Europe, Art. No.: 87500707: Made in China.
• Nominal life of 100,000 h

Interfaces

• Near-field communication (NFC)
• one4all (DALI-2 DT 6, DSI, switchDIM, corridorFUNCTION)
• ready2mains (configuration via network)
• U6Me2 (chronoSTEP configuration via network)
• Clamps: 45° couplings

Functions

• Output current adjustable in 1 mA steps (NFC, DALI, ready2mains) programmable chronoSTEP: times and levels (NFC, DALI, U6Me2, ready2mains)
• Dimming with mains voltage (inputDIM)
• Extended Constant Light Output (eCLO) function
• Protective functions (overtemperature, short circuit, overload, no-load operation, permitted input voltage, low surge current surge)
• Intelligent Temperature Guard (ITG)
• Intelligent Voltage Guard Plus (IVG+)
• Suitable for emergency lighting units pack. EN 50172

Advantages

• Flexible configuration with companionSUITE (NFC, DALI, ready2mains™) or U6Me2 Programmer
• Operational window designed for maximum compatibility
• Great energy savings thanks to high efficiency and low stand-by consumption
• Possibility of In-Field programming following installation with NFC interface and ready2mains
• High protection against overvoltages: up to 10 kV asymmetrical (insulation class I and II)
• Typical applications
• Roads and industries

For more information, see the attached PDF
