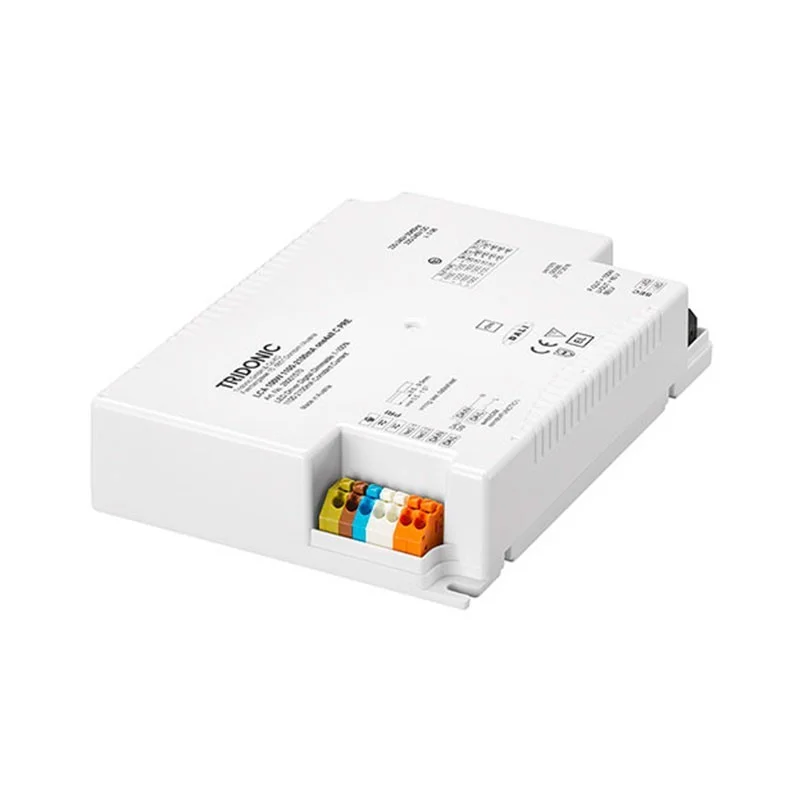

Tridonic LED Driver LCA 100W 1100–2100mA one4all C PRE Dimmable
  • Tridonic LED Driver LCA 100W 1100–2100mA one4all C PRE Dimmable
  • Tridonic LED Driver LCA 100W 1100–2100mA one4all C PRE Dimmable
Tridonic LED Driver LCA 100W 1100–2100mA one4all C PRE Dimmable
Tridonic LED Driver LCA 100W 1100–2100mA one4all C PRE Dimmable Tridonic LED Driver LCA 100W 1100–2100mA one4all C PRE Dimmable

Tridonic LED Driver LCA 100W 1100-2100mA one4all C PRE Dimmable

Generico

Trustpilot
$105.07

Dimmable built-in LED Driver, Dimming range 1 to 100 %, For luminaires of protection class I and protection class II, Adjustable output current between 1,100 and 2,100 mA.

Read more ...
local_shipping Not available

Quantity

payments You can pay in installments with PAYPAL OR SCALAPAY
Description
Product Information:

Via ready2mains Programmer, I-SELECT 2 plugs or DALI, Max. output power 100 W, Up to 92 % efficiency, Power input on stand-by < 0.2 W, Nominal life-time up to 100,000 h.

Housing properties

  • Casing: polycarbonate, white
  • Type of protection IP20

Interfaces

  • one4all (DALI-2 DT 6, DSI, switchDIM, corridorFUNCTION)
  • ready2mains (configuration and dimming via mains)
  • Terminal blocks: 45° push terminals

Functions

  • Adjustable output current in 1-mA-steps (DALI, ready2mains, I-SELECT 2)
  • Constant light output function (CLO)
  • Power-up fading at AC
  • Configurable via ready2mains
  • Switch off the Driver with fade2zero
  • Service monitor to log certain events
  • Protective features (overtemperature, short-circuit, overload, no-load, input voltage range, reduced surge amplification)
  • Intelligent Voltage Guard (overvoltage and undervoltage monitoring)
  • Suitable for emergency escape lighting systems acc. to EN 50172

Benefits

  • Application-oriented operating window for maximum compatibility
  • Best energy savings due to low stand-by losses and high efficiency
  • Flexible configuration via DALI, ready2mains and I-SELECT 2
  • Reliability proven by life-time up to 100,000 h and 5-year guarantee

Typical applications

  • For linear/area lighting in office applications

picture_as_pdf Datasheet
Warranty 2 Years
100% original product by

Details:

Data sheet

Barcode:
9006210594286
Reference
28001570
Input voltage
220-240 V
Depth in mm
30
Width in mm
100
Length in mm
140
Degree of protection
IP20
Material
Pvc
Light source
LED
Average hours duration
100.000
Adjustable power
with DALI system
Constant current output
1100~2100mA
Power output in watts
100 w
Efficiency %
91
